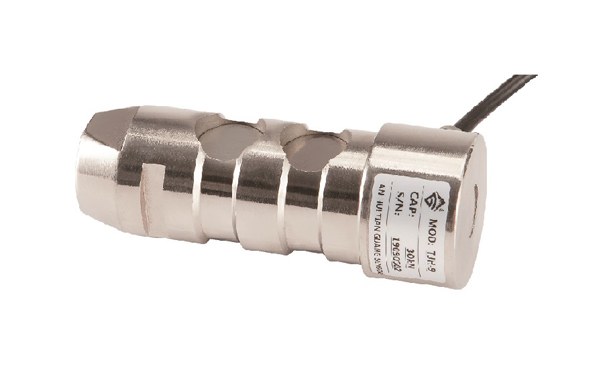

The structure of the shear pin type load cell is simple and the installation is convenient. This load cell for sale is suitable for port and terminal cargo measurement and safety inspection of hoist and lifting equipment.
| Technical Parameter | |
| Rated Load | 10~100 kN |
| Comprehensive Precision | 0.5% FS |
| Sensitivity | 2.0 mV/V |
| Creep | ±0.05% FS/30min |
| Zero Output | ±1% FS |
| Temperature Effect On Zero | ±0.05% FS/10℃ |
| Temperature Effect On Output | ±0.05% FS/10℃ |
| Operating Temperature Range | -20~+65 ℃ |
| Input Resistance | 750±15 Ω |
| Output Resistance | 700± 5 Ω |
| Insulation Resistance | ＞5000 MΩ |
| Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC |
| Material | Alloy Steel or Stainless Steel |
| Load Cell Mode Of Connection | Input+: Red |
| Input-: Black | |
| Output+: Green | |
| Output-: White | |
